iMINI-A Connector Specifications
Non-Shielded Applications
Materials:
Contact Carrier
Rigid PVC
Coupling Nut
Nickel Plated Brass
Panel Mount Housing
Nickel Plated Brass
Contacts
Cu Alloy, Gold over Nickel Plating
Plug O-Ring
Silicone
Overmold
PVC
Dimensions:
Receptacle Mounting Thread
.5" NPT
Basic Plug OD
1"
Receptacle OD
1" Hex
Overmold Length w/ Strain Relief
1.14"
Cable Diameter
.27"
Max Wire Size
14 AWG
Coupling Thread Size
7/8 - 16 UN
Performance:
Ingress Protection
IP67
Max Continuous Temperature
-40°C to 105°C
Voltage
300V

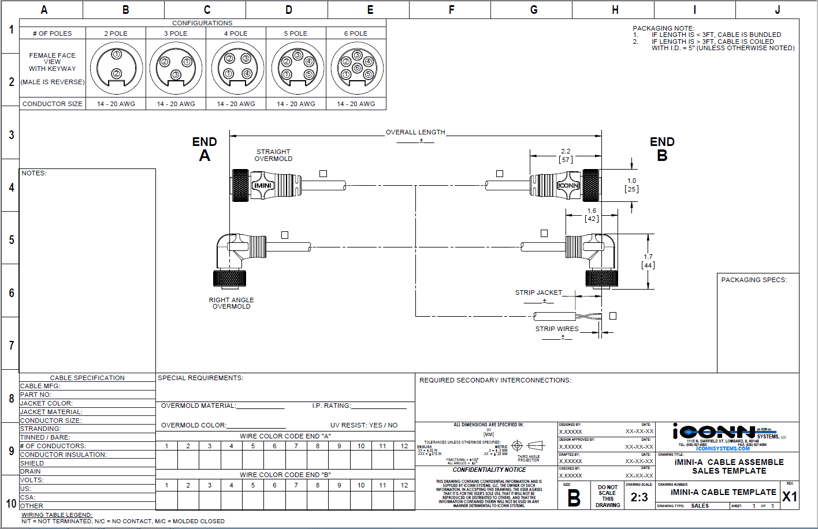

Figure 1
