iMINI-C Connector Specifications
For Shielded Applications
Materials:
Contact Carrier
Rigid PVC
Coupling Nut
Nickel Plated Brass
Panel Mount Housing
Nickel Plated Brass
Contacts
Cu Alloy, Gold over Nickel Plating
Plug O-Ring
Silicone
Overmold
Overmold material will vary depending on cable selection (PVC, TPU, or other)
Dimensions:
Receptacle Mounting Thread
3/4" NPT
Basic Plug OD
1 1/4"
Receptacle OD
1 1/8" Square
Overmold Length w/ Strain Relief
2"
Cable Diameter
.52"
Max Wire Size
14 AWG
Coupling Thread Size
1 1/8 - 16 UN
Performance:
Ingress Protection
IP67
Max Continuous Temperature
-40°C to 105°C
Voltage
300V

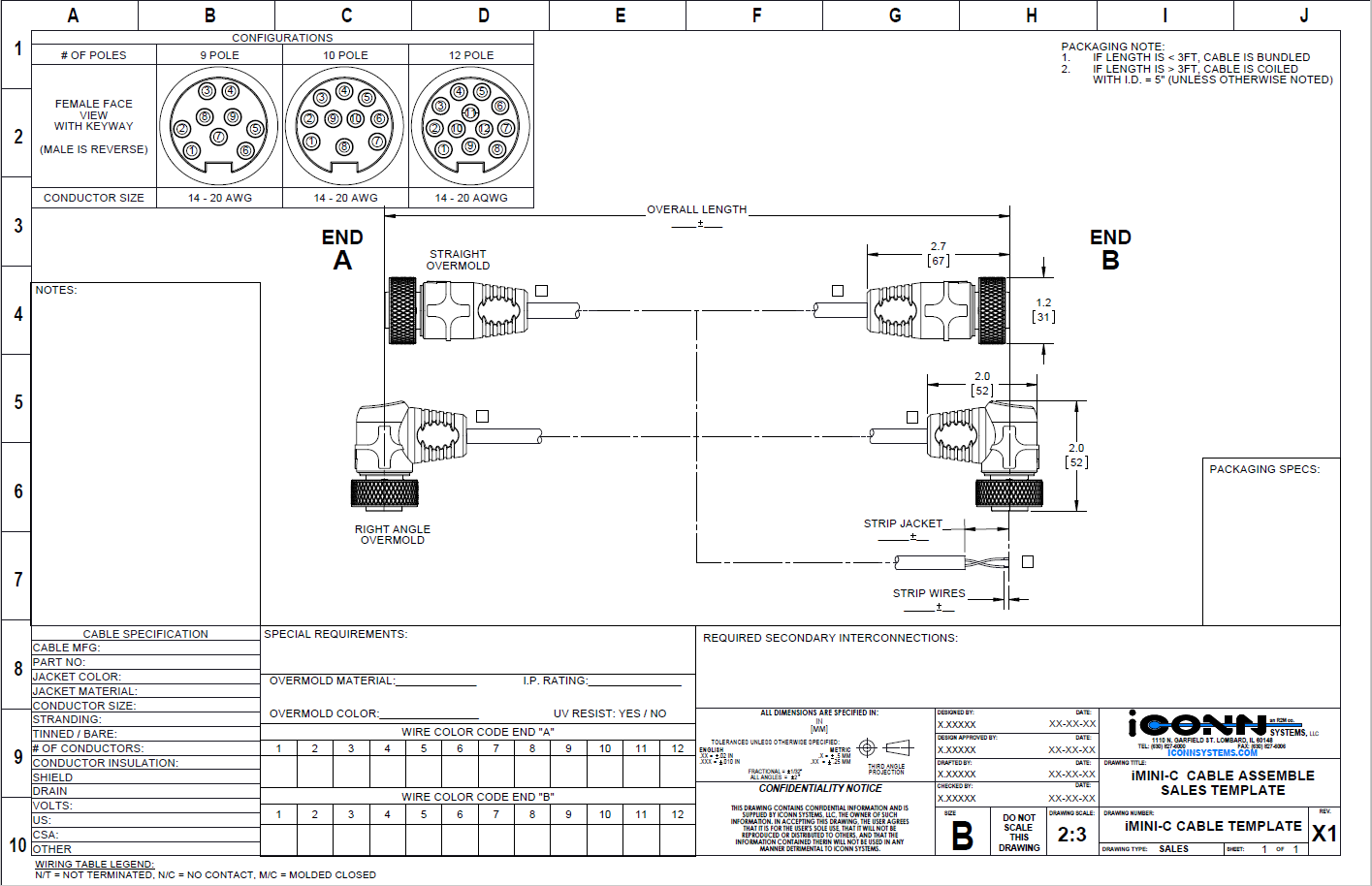

Figure 1
